MAN NL323F (Retrofitted Electric)

From SgWiki
Jump to navigation Jump to search

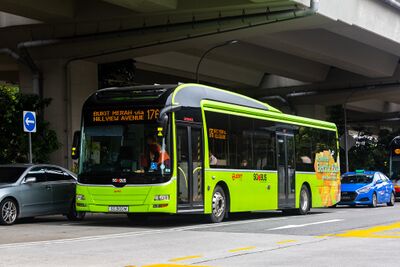

SMRT Buses SG3100M (Service 176)

Specifications[edit]

Operator(s) SMRT Buses
Registration no. SG3100M
Vehicle make MAN
Vehicle manufacturer MAN Truck & Bus (Chassis)
Linkker (Drivetrain)
Vehicle model NL323F (A22)
Vehicle bodywork MAN Lion's City Hybrid
Vehicle bodywork assembler Gemilang Coachwork
Length 11.98m
Width 2.5m
Quantity 1
Year 2013
Period of registration 2 Sep 2013
Passenger capacity Seating: 35
Standing: 56
Wheelchair bay: 1
Total: 91
Electric motor model Danfoss Editron EM-PMI375-T800-1600
synchronous reluctance assisted permanent magnet motor (dual inverter)
Battery Lithium iron phosphate
Battery capacity 177.5 kWh
Power/torque 139 kW / 828 Nm (Continuous)
231 kW / 2100 Nm (Maximum)
Suspension system Electronically Controlled Air Suspension (ECS)
Braking system Electronic Braking System (EBS)
Anti-Lock Braking System (ABS)
Antriebsschlupfregelung (ASR) / Traction Control System (TCS)
Electronic Stability Programme (ESP)
Air-con model Denso LD8u
EDS model Mobitec MobiLED
EDS controller model Mobitec MobiMASTER ICU 402
Seat model Vogelsitze System 750/3
Door model Masats
Additional features Modified seating configuration
Tongda TD-10 Bus line managing and station announcer system
Door movement markings
NEC telematics system
TNT Surveillance T-FA Front Alert Camera
TNT Surveillance T-SA Side Alert Cameras
Stroller restraint system

Deployments[edit]

Registration no. Service
SG3100M KJDEP 176

Former deployments[edit]

Other information[edit]

Legend[edit]

Deployments
KJDEP Kranji Depot

Buses in depots[edit]

Click to expand/collapse
KJDEP 1 bus SG3100M

Lifespan expiry date[edit]

Click to expand/collapse
Lifespan expiry date Registration no.
1 Sep 2030 SG3100M

Type of purchase(s)[edit]

Click to expand/collapse
Land Transport Authority (LTA)'s Bus Service Enhancement Programme (BSEP) SG3100M

Notes[edit]

  • SG3100M
    • features SBS Transit give way sticker.
    • has the "Retrofitted Electric Bus - 100% Cleaner Energy" decals pasted.
