BYD BC12A04
Jump to navigation
Jump to search

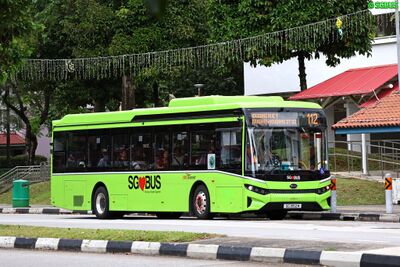

SG3152M (Service 112)Specifications
| Operator |
|
|
|
|
|---|---|---|---|---|
| Registration number | SG3102H – SG3192Y SG3202C – SG3236E |
SG3193U – SG3200H | SG3201E SG3238A – SG3244G |
SG3237C |
| Vehicle make | BYD | |||
| Vehicle manufacturer | BYD Auto Industry | |||
| Vehicle model | BC12A04 (GTK6127BEVB1) | |||
| Vehicle bodywork | Zhuhai Guangtong | |||
| Length | 11.995m | |||
| Width | 2.55m | |||
| Quantity | 126 | 8 | 8 | 1 |
| 143 (Total) | ||||
| Year of manufacture | 2024 | |||
| Period of registration | 14 Oct 2024 – present | |||
| Passenger capacity | Seating: 28 Standing: 55 Wheelchair bay: 2 Total: 83 | |||
| Electric motor model | BYD EQ13B permanent magnet synchronous electric motor (x2) | |||
| Battery | BYD Blade lithium iron phosphate | |||
| Battery capacity | 433.45 kWh | |||
| Power/torque | 300 kW (150 kW × 2) / 1100 Nm (550 Nm × 2) (Maximum) | |||
| Suspension system | BYD Active Air Control System | |||
| Braking system | Anti-Lock Braking System (ABS) Traction Control System (TCS) | |||
| Air-con model | Valeo REVO-E Global | |||
| EDS model | Luminator ULTIMA | |||
| EDS controller model | Luminator Basic | |||
| PIDS model | Luminator INFOtainment | |||
| Seat model | Ster 8MI | |||
| Door model | SMC Transit | |||
| Additional features | ||||
| ADAS model | TNT Surveillance T-DA Driver Alert System TNT Surveillance T-FA Front & T-SA Side Alert Cameras TNT Surveillance 360° Surround View Camera System TNT Surveillance T-DM821 Camera Mirror System | |||
| Others | USB charging ports Stroller restraint system Automatic wheelchair ramp Rear emergency exit hatch | |||
Deployments
SBS Transit
| Registration no. | Deployment | Advertisement |
|---|---|---|
| SG3102H | SWDEP 86 | N/A |
| SG3103E | SWDEP 86 | SBS Transit: L & R: Making Every Journey A Delight. B: We Operate The Downtown Line Which Is One Of The World's Most Reliable MRT Lines. We Are Also Singapore's Largest And Most Established Public Bus Operator. |
| SG3104C | SWDEP 86 | N/A |
| SG3105A | SWDEP 107 | |
| SG3106Y | SWDEP 107 | |
| SG3107U | SWDEP 107 | |
| SG3108S | SWDEP 159 | SBS Transit: L & R: Making Every Journey A Delight. B: We Operate The Downtown Line Which Is One Of The World's Most Reliable MRT Lines. We Are Also Singapore's Largest And Most Established Public Bus Operator. |
| SG3109P | SWDEP 159 | N/A |
| SG3110J | SWDEP 163 | |
| SG3111G | SWDEP 159 | |
| SG3112D | SWDEP 159 | |
| SG3113B | SWDEP 159 | |
| SG3114Z | SWDEP 159 | |
| SG3115X | SWDEP 159 | |
| SG3116T | SWDEP 159 | |
| SG3117R | SWDEP 159 | |
| SG3118M | SWDEP 159 | |
| SG3119K | SWDEP 159 | |
| SG3120E | SWDEP 159 | |
| SG3121C | SWDEP 159 | |
| SG3122A | SWDEP 159 | |
| SG3123Y | SWDEP 86 | |
| SG3124U | SWDEP 86 | |
| SG3125S | SWDEP 86 | |
| SG3126P | SWDEP 86 | |
| SG3127L | SWDEP 107 | |
| SG3128J | SWDEP 107 | |
| SG3129G | SWDEP 153 | |
| SG3130B | SWDEP 153 | |
| SG3131Z | SWDEP 325 | |
| SG3132X | SWDEP 116 | |
| SG3133T | SWDEP 159 | |
| SG3134R | SWDEP 159/159A*/112/325* | |
| SG3135M | SWDEP 116 | |
| SG3136K | SWDEP 116 | |
| SG3137H | SWDEP 112 | |
| SG3138E | SWDEP 116 | |
| SG3139C | SWDEP 86 | |
| SG3140Y | SWDEP 112 | |
| SG3141U | SWDEP 116 | |
| SG3142S | SWDEP 116 | |
| SG3143P | SWDEP 112 | |
| SG3144L | SWDEP 116/116A* | |
| SG3145J | SWDEP 116 | |
| SG3146G | SWDEP 112 | |
| SG3147D | SWDEP 80/80A* | |
| SG3148B | SWDEP 112 | |
| SG3149Z | SWDEP 51 | |
| SG3150T | SWDEP 116 | |
| SG3151R | SWDEP 116 | |
| SG3152M | SWDEP 112 | |
| SG3153K | SWDEP 116/116A* | |
| SG3154H | SWDEP 51 | |
| SG3155E | SWDEP 112 | |
| SG3156C | SWDEP 112 | |
| SG3157A | SWDEP 151 | |
| SG3158Y | SWDEP 151 | |
| SG3159U | SWDEP 151 | |
| SG3160P | SWDEP 325 | |
| SG3161L | SWDEP 325 | |
| SG3162J | SWDEP 329 | |
| SG3163G | SWDEP 80 | |
| SG3164D | SWDEP 80 | |
| SG3165B | SWDEP 80 | |
| SG3166Z | SWDEP 80 | |
| SG3167X | SWDEP 163 | |
| SG3168T | SWDEP 163 | |
| SG3169R | SWDEP 151 | |
| SG3170K | SWDEP 80/80A* | |
| SG3171H | SWDEP 51 | |
| SG3172E | SWDEP 325 | |
| SG3173C | SWDEP 325 | |
| SG3174A | SWDEP 325 | |
| SG3175Y | SWDEP 329 | |
| SG3176U | SWDEP 325 | |
| SG3177S | SWDEP 325 | |
| SG3178P | SWDEP 151 | |
| SG3179L | SWDEP 151 | |
| SG3180G | SWDEP SP | |
| SG3181D | SWDEP 51 | |
| SG3182B | SWDEP 112 | |
| SG3183Z | SWDEP 325 | |
| SG3184X | SWDEP SP | |
| SG3185T | SWDEP 112 | |
| SG3186R | SWDEP 113 | |
| SG3187M | SWDEP 113 | |
| SG3188K | SWDEP SP | |
| SG3189H | SWDEP SP | |
| SG3190C | SWDEP 51 | |
| SG3191A | SWDEP SP | |
| SG3192Y | SWDEP SP | |
| SG3202C | SWDEP SP | |
| SG3203A | SWDEP | |
| SG3204Y | SWDEP | |
| SG3205U | SWDEP | |
| SG3206S | SWDEP | |
| SG3207P | SWDEP | |
| SG3208L | SWDEP | |
| SG3209J | SWDEP | |
| SG3210D | SWDEP | |
| SG3211B | SWDEP | |
| SG3212Z | SWDEP | |
| SG3213X | SWDEP | |
| SG3214T | SWDEP | |
| SG3215R | SWDEP | |
| SG3216M | SWDEP | |
| SG3217K | SWDEP | |
| SG3218H | SWDEP | |
| SG3219E | SWDEP | |
| SG3220A | SWDEP | |
| SG3221Y | SWDEP | |
| SG3222U | SWDEP | |
| SG3223S | SWDEP | |
| SG3224P | SWDEP | |
| SG3225L | SWDEP | |
| SG3226J | SWDEP | |
| SG3227G | SWDEP | |
| SG3228D | SWDEP | |
| SG3229B | SWDEP | |
| SG3230X | SWDEP | |
| SG3231T | SWDEP | |
| SG3232R | SWDEP | |
| SG3233M | SWDEP | |
| SG3234K | SWDEP | |
| SG3235H | SWDEP | |
| SG3236E | SWDEP |
Tower Transit
| Registration no. | Deployment |
|---|---|
| SG3193U | BUDEP FD |
| SG3194S | BUDEP FD |
| SG3195P | BUDEP FD |
| SG3196L | BUDEP FD |
| SG3197J | BUDEP FD |
| SG3198G | BUDEP FD |
| SG3199D | BUDEP FD |
| SG3200H | BUDEP FD |
Go-Ahead
| Registration no. | Deployment |
|---|---|
| SG3201E | LYDEP 15 |
| SG3238A | LYDEP 15 |
| SG3239Y | LYDEP 15 |
| SG3240S | LYDEP 15 |
| SG3241P | LYDEP 15 |
| SG3242L | LYDEP 15 |
| SG3243J | LYDEP 15 |
| SG3244G | LYDEP 15 |
SMRT Buses
| Registration no. | Deployment |
|---|---|
| SG3237C | GBDEP |
Former deployments
Other information
Legend
| Deployments | |
|---|---|
| BUDEP | Bulim Depot |
| GBDEP | Gali Batu Depot |
| LYDEP | Loyang Depot |
| SWDEP | Sengkang West Depot |
| FD | Flexi-Deployment |
| SP | Spare bus |
| * | Crossover |
| / | Sharebus |
| // | Secondary deployment |
| Advertisement | |
| N/A | Not available |
| (empty) | Two-third (⅔) body ad with front one-third (⅓) of left & right sides left unwrapped (in previous body colour). |
| B: | Ad covering the entire rear. |
| L: | Ad on nearside / left side. (Shared ad) |
| R: | Ad on offside / right side. (Shared ad) |
Depot allocation
SBS Transit
| Click to expand/collapse | ||
|---|---|---|
| SWDEP | 126 buses | SG3102H SG3103E SG3104C SG3105A SG3106Y SG3107U SG3108S SG3109P SG3110J SG3111G SG3112D SG3113B SG3114Z SG3115X SG3116T SG3117R SG3118M SG3119K SG3120E SG3121C SG3122A SG3123Y SG3124U SG3125S SG3126P SG3127L SG3128J SG3129G SG3130B SG3131Z SG3132X SG3133T SG3134R SG3135M SG3136K SG3137H SG3138E SG3139C SG3140Y SG3141U SG3142S SG3143P SG3144L SG3145J SG3146G SG3147D SG3148B SG3149Z SG3150T SG3151R SG3152M SG3153K SG3154H SG3155E SG3156C SG3157A SG3158Y SG3159U SG3160P SG3161L SG3162J SG3163G SG3164D SG3165B SG3166Z SG3167X SG3168T SG3169R SG3170K SG3171H SG3172E SG3173C SG3174A SG3175Y SG3176U SG3177S SG3178P SG3179L SG3180G SG3181D SG3182B SG3183Z SG3184X SG3185T SG3186R SG3187M SG3188K SG3189H SG3190C SG3191A SG3192Y SG3202C SG3203A SG3204Y SG3205U SG3206S SG3207P SG3208L SG3209J SG3210D SG3211B SG3212Z SG3213X SG3214T SG3215R SG3216M SG3217K SG3218H SG3219E SG3220A SG3221Y SG3222U SG3223S SG3224P SG3225L SG3226J SG3227G SG3228D SG3229B SG3230X SG3231T SG3232R SG3233M SG3234K SG3235H SG3236E |
Tower Transit
| Click to expand/collapse | ||
|---|---|---|
| BUDEP | 8 buses | SG3193U SG3194S SG3195P SG3196L SG3197J SG3198G SG3199D SG3200H |
Go-Ahead
| Click to expand/collapse | ||
|---|---|---|
| LYDEP | 8 buses | SG3201E SG3238A SG3239Y SG3240S SG3241P SG3242L SG3243J SG3244G |
SMRT Buses
| Click to expand/collapse | ||
|---|---|---|
| GBDEP | 1 bus | SG3237C |
Lifespan expiry date
| Click to expand/collapse | |
|---|---|
| Lifespan expiry date | Registration number |
| 13 Oct 2041 | SG3102H – SG3111G |
| 27 Oct 2041 | SG3112D – SG3121C |
| 25 Nov 2041 | SG3122A – SG3125S |
| 26 Nov 2041 | SG3126P, SG3127L |
| 27 Nov 2041 | SG3128J, SG3129G |
| 28 Nov 2041 | SG3130B, SG3131Z |
| 26 Dec 2041 | SG3132X – SG3151R |
| 22 Jan 2042 | SG3152M – SG3176U |
| 24 Apr 2042 | SG3177S – SG3201E |
| 15 May 2042 | SG3202C – SG3226J |
| 24 Jun 2042 | SG3237C |
| 25 Jun 2042 | SG3238A – SG3244G |
| 26 Jun 2042 | SG3227G – SG3236E |
Type of purchase(s)
All buses are bought under Land Transport Authority (LTA)'s Bus Contracting Model (BCM).
Notes
- All buses have the smaller sized "Eco Bus - Zero Emissions, Cleaner Air" decals pasted.
