MAN ND323F (Euro VI) (Batch 1)

Main

Deployments: SG59xx

Deployments: SG60xx

Deployments: SG61xx

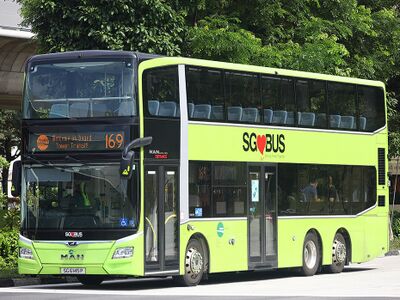

SG6145P (Service 169)

Specifications

Operators
Registration number	SG5921Y – SG5998B SG6000Z – SG6171M
Vehicle make	MAN
Vehicle manufacturer	MAN Truck & Bus
Vehicle model	ND323F (A95)
Vehicle bodywork	MAN Lion's City DD
Vehicle bodywork assembler	Gemilang Coachwork
Length	12m
Width	2.55m
Quantity	250
Year	2018
Period of registration	22 May 2018 – 28 Feb 2020
Passenger capacity	Seating: 25 (Lower deck) / 57 (Upper deck) Standing: 57 Wheelchair bay: 2 Total: 139
Engine model	MAN D 2066 LUH-58
Engine capacity	10518 cc
Emission standard	Euro VI
Transmission model	ZF EcoLife 6 AP 2000 B Voith DIWA 864.6 (SG6029S)
Power/torque	320 hp (235 kW) @ 1900 rpm / 1600 Nm @ 1000 - 1400 rpm
Suspension system	Electronically Controlled Air Suspension (ECS)
Braking system	Electronic Braking System (EBS) Anti-Lock Braking System (ABS) Antriebsschlupfregelung (ASR) / Traction Control System (TCS) Electronic Stability Programme (ESP)
Exhaust system	MAN SCRT MAN PURE DIESEL Technology (Exhaust Gas Recirculation (EGR) Technology) MAN CRTec (Continuously Regenerating Trap (CRT)) MAN AdBlue (Selective Catalytic Reduction (SCR))
Air-con model	Denso
EDS model	Luminator ULTIMA
EDS controller model	Luminator Basic
PIDS model	Luminator INFOtainment
APCS model	iris IRMA MATRIX (Entrance & exit doors) Eurotech DynaPCN 10-20 (Above staircases)
Seat model	Vogel Industrie System 750/3
Door model	Masats
Additional features
ADAS model	Seeing Machines Guardian Anti-Fatigue Driving System TNT Surveillance T-FA Front Alert Camera ST Engineering AGIL DriveSafe+ (except SG5939Y – SG5941P, SG5943J, SG5958S, SG5963B, SG5965X, SG5973Y, SG5974U, SG5976P, SG5980B, SG5997D, SG6006H, SG6012P, SG6013L, SG6016D, SG6018Z, SG6023H, SG6024E, SG6037T, SG6044Y – SG6046S, SG6058H, SG6059E, SG6065L, SG6070X, SG6071T, SG6074K, SG6080S, SG6081P, SG6091K, SG6092H, SG6094C, SG6100T, SG6109U, SG6127S, SG6128P, SG6130G, SG6135T, SG6144S, SG6145P, SG6150Z, SG6153R, SG6157E & SG6167B) TNT Surveillance T-SA Side Alert Cameras (SG5927G – SG5930X, SG5934K, SG5939Y – SG5941P, SG5943J – SG5945D, SG5947Z, SG5949T – SG5951K, SG5958S – SG5963B, SG5965X – SG5970E, SG5973Y – SG5976P, SG5978J – SG5983T, SG5985M, SG5997D, SG6006H – SG6018Z, SG6020R, SG6021M, SG6023H – SG6026A, SG6028U, SG6030L, SG6032G – SG6040H, SG6044Y – SG6046S, SG6048L, SG6051B, SG6058H, SG6059E, SG6065L, SG6068D, SG6070X – SG6074K, SG6080S, SG6081P, SG6091K, SG6092H, SG6094C, SG6098S, SG6100T, SG6107A – SG6112J, SG6114D – SG6118T, SG6120K – SG6131D, SG6135T, SG6137M, SG6139H – SG6145P, SG6150Z, SG6151X, SG6153R, SG6157E & SG6167B) TNT Surveillance T-DA Driver Alert System (SMRT Buses except SLDEP buses) TNT Surveillance 360° Surround View Camera System (Tower Transit)
Others	USB charging ports with covers Stroller restraint system Larger front EDS panel (SG5946B – SG5998B & SG6000Z – SG6171M) Additional hand grips

Other information

Legend

Depot allocation
AMDEP Ang Mo Kio Depot (Defunct) (SBS Transit / SMRT Buses) ARBP Ayer Rajah Bus Park (Defunct) (SBS Transit) BBDEP Bukit Batok Depot (SBS Transit) BNDEP Bedok North Depot (SBS Transit) BRBP Braddell Bus Park (SBS Transit) BUDEP Bulim Depot (Tower Transit) CGBP Changi Bus Park (Defunct) (SBS Transit) HGDEP Hougang Depot (SBS Transit) KJDEP Kranji Depot (SMRT Buses) LYDEP Loyang Depot (Go-Ahead) MDDEP Mandai Depot (Tower Transit) SEDEP Seletar Depot (SBS Transit) SLBP Soon Lee Bus Park (Defunct) (SBS Transit) SLDEP Soon Lee Depot (SMRT Buses) SWDEP Sengkang West Depot (SBS Transit) UPDEP Ulu Pandan Depot (SBS Transit) WLBP Woodlands Bus Park (SMRT Buses) WLDEP Woodlands Depot (SMRT Buses)
Deployment legend
EB	Employee bus
FD	Flexi-Deployment
SP	Spare bus
TRG	Training Bus
*	Crossover
/	Sharebus
//	Secondary deployment
Livery type
SBS0000B	SBS Transit Livery
SMB0000K	SMRT Buses White/Red Livery
SMB9999U	SMRT Pixel Livery
SG0000M	LTA Lush Green Livery

Advertisement
N/A	Not available
(empty)	Two-third (⅔) body ad with front one-third (⅓) of left & right sides left unwrapped (in previous body colour).
B:	Ad covering the entire rear.
L:	Ad on nearside / left side. (Shared ad)
R:	Ad on offside / right side. (Shared ad)
BT:	Two-third (⅔) body ad with extra rectangular Moove Big Top ad portions extending upwards along length of sides & rear.
BT+:	Two-third (⅔) body ad with extra rectangular Moove Big Top Plus ad portions extending upwards along length of sides & rear.
2D:	Two-third (⅔) body ad with two-dimensional (2D) pop-up at side(s) / rear.
3D:	Two-third (⅔) body ad with three-dimensional (3D) pop-up at side(s) / rear.
MS:	Two-third (⅔) strip ad covering center portion of left & right sides.
PS:	Partial side ad covering middle portion of left & right sides.
NS:	Ad covering the center portion of the nearside.
OS:	Ad covering the center portion of the offside.

Lifespan expiry date

Click to expand/collapse
Lifespan expiry date	Registration number
21 May 2035	SG5921Y – SG5926J
31 May 2035	SG5927G – SG5930X
18 Jun 2035	SG5931T
25 Jun 2035	SG5932R – SG5937C
18 Jul 2035	SG5938A – SG5940S
6 Aug 2035	SG5941P – SG5943J
13 Aug 2035	SG5944G – SG5948X
29 Aug 2035	SG5953E, SG5954C
2 Sep 2035	SG5949T
9 Sep 2035	SG5950M
17 Sep 2035	SG5951K, SG5952H
19 Sep 2035	SG5959P – SG5962D
3 Oct 2035	SG5955A, SG5956Y
17 Oct 2035	SG5963B – SG5970E, SG5974U
4 Nov 2035	SG5975S, SG5982X – SG5985M
7 Nov 2035	SG5957U, SG5958S, SG5991U – SG5994L
8 Nov 2035	SG5972A
11 Nov 2035	SG5987H, SG5995J – SG5998B, SG6001X – SG6003R
12 Nov 2035	SG5973Y, SG5976P, SG5977L
14 Nov 2035	SG5971C, SG5988E – SG5990Y, SG6000Z
18 Nov 2035	SG5978J – SG5981Z
26 Nov 2035	SG5986K, SG6006H – SG6009A
2 Dec 2035	SG6010U – SG6013L, SG6017B, SG6018Z
10 Dec 2035	SG6014J – SG6016D, SG6019X, SG6020R
12 Dec 2035	SG6021M – SG6025C
17 Dec 2035	SG6026A – SG6031J
18 Dec 2035	SG6032G – SG6037T
20 Dec 2035	SG6004M, SG6005K, SG6046S
26 Dec 2035	SG6047P, SG6049J, SG6050D, SG6052Z – SG6055R
27 Dec 2035	SG6056M – SG6064P
3 Jan 2036	SG6038R, SG6041E – SG6045U
13 Jan 2036	SG6069B – SG6073M
16 Jan 2036	SG6039M, SG6040H
28 Jan 2036	SG6074K – SG6078A
13 Feb 2036	SG6079Y – SG6081P, SG6096Y, SG6097U
29 Feb 2036	SG6065L – SG6068D, SG6084G – SG6089T, SG6098S, SG6099P
13 Mar 2036	SG6082L, SG6083J, SG6100T – SG6104H
14 Mar 2036	SG6090M – SG6095A, SG6105E, SG6106C
24 Mar 2036	SG6113G
1 Apr 2036	SG6114D – SG6116Z, SG6120K, SG6121H
4 Apr 2036	SG6123C – SG6128P
9 Apr 2036	SG6129L – SG6134X
15 Apr 2036	SG6122E, SG6135T – SG6140C
12 Jun 2036	SG6111L
24 Jun 2036	SG6048L, SG6051B, SG6117X – SG6119R, SG6141A – SG6144S
16 Jul 2036	SG6148G, SG6149D
21 Jul 2036	SG6145P, SG6147J
18 Aug 2036	SG6112J
22 Aug 2036	SG6107A
29 Aug 2036	SG6108Y
12 Sep 2036	SG6109U, SG6110P, SG6146L, SG6150Z, SG6151X
5 Nov 2036	SG6152T
19 Jan 2037	SG6153R – SG6155K
12 Feb 2037	SG6156H
26 Feb 2037	SG6157E – SG6164J
27 Feb 2037	SG6165G – SG6171M

Type of purchase(s)

All buses are bought under Land Transport Authority (LTA)'s Bus Contracting Model (BCM).

Exterior CCTVs information

Click to expand/collapse
Buses equipped with newer gen (black) cameras	SG5934K, SG5944G, SG5949T, SG5951K, SG5981Z, SG6005K, SG6105E & SG6113G – SG6171M
Buses equipped with older gen (white) cameras	SG5921Y – SG5933M, SG5935H – SG5943J, SG5945D – SG5948X, SG5950M, SG5952H – SG5980B, SG5982X – SG5998B, SG6000Z – SG6004M, SG6006H – SG6104H & SG6106C – SG6112J

Notes

• HGDEP & BRBP buses are interchangeable.
• SG5948X features a different rear paint job.
• SG6012P is fitted with a smaller front EDS cut out.
• SG6062U features full blue seat covers similar to those of the Batch 2 units on the upper deck.
• SG6117X was fitted with a smaller front EDS cut out when it was newly deployed on revenue service.
