MAN NL323F (Euro V) (Batch 3)

From SgWiki
Jump to navigation Jump to search

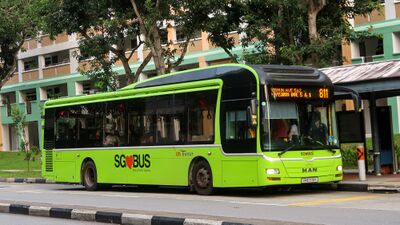

SBS Transit SMB3118K (Service 811)

Specifications[edit]

Operators Go-Ahead SBS Transit SMRT Buses Tower Transit
Registration no. SG1700U – SG1748H
SMB1421Y – SMB1650C
SMB3117M – SMB3169M
Vehicle make MAN
Vehicle manufacturer MAN Truck & Bus
Vehicle model NL323F (A22) 11L AUTO ABS TURBO
Vehicle bodywork MAN Lion's City Hybrid
Vehicle bodywork assembler Gemilang Coachwork
Length 11.98m
Width 2.5m
Quantity 332
Year 2014 & 2015
Period of registration 8 Jul 2014 – 5 Oct 2016
Passenger capacity Seating: 35
Standing: 56
Wheelchair bay: 1
Total: 91
Engine model MAN D 2066 LUH-32
Engine capacity 10518 cc
Emission standard Euro V
Transmission model Voith DIWA 864.5
ZF EcoLife 6 AP 2000 B (SMB1421Y – SMB1567K & SMB1569E – SMB1581T)
Power/torque 320 hp (235 kW) @ 1900 rpm / 1600 Nm @ 1000 - 1400 rpm
Suspension system Electronically Controlled Air Suspension (ECS)
Braking system Electronic Braking System (EBS)
Anti-Lock Braking System (ABS)
Antriebsschlupfregelung (ASR) / Traction Control System (TCS)
Electronic Stability Programme (ESP)
Exhaust system MAN PURE DIESEL Technology (Exhaust Gas Recirculation (EGR) Technology) (MAN PM-KAT)
Air-con model Denso LD8u
EDS model Mobitec MobiLED
EDS controller model Mobitec MobiMASTER ICU 402
Mobitec MobiMASTER ICU 403 (SMB1540L)
PIDS model LECIP LED
Seat model Vogelsitze System 750/3
Door model Masats
Additional features
Advanced driver assistance system TNT Surveillance T-DA Driver Alert System (SMB1422U, SMB1425L, SMB1427G, SMB1428D, SMB1431T – SMB1433M, SMB1435H – SMB1439Y, SMB1441P – SMB1443J, SMB1445D – SMB1447Z, SMB1449T – SMB1477L, SMB1480B – SMB1482X, SMB1485M – SMB1487H, SMB1489C, SMB1491U, SMB1493P, SMB1496G – SMB1502Y, SMB1504S, SMB1507J – SMB1514M, SMB1516H, SMB1518C – SMB1521S, SMB1524J, SMB1525G, SMB1530R, SMB1533H – SMB1537Y, SMB1539S, SMB1545Z – SMB1557P, SMB1559J, SMB1563X, SMB1564T, SMB1566M, SMB1569E – SMB1588A, SMB1591P – SMB1607D, SMB1609Z – SMB1650C)

TNT Surveillance T-FA Front & T-SA Side Alert Cameras (SMB1422U, SMB1425L, SMB1427G, SMB1428D, SMB1431T – SMB1433M, SMB1435H – SMB1439Y, SMB1441P – SMB1443J, SMB1445D – SMB1447Z, SMB1449T – SMB1477L, SMB1480B – SMB1482X, SMB1485M – SMB1487H, SMB1489C, SMB1491U, SMB1493P, SMB1496G – SMB1502Y, SMB1504S, SMB1507J – SMB1514M, SMB1516H, SMB1518C – SMB1521S, SMB1524J, SMB1525G, SMB1530R, SMB1533H – SMB1537Y, SMB1539S, SMB1545Z – SMB1557P, SMB1559J, SMB1563X, SMB1564T, SMB1566M, SMB1569E – SMB1588A, SMB1591P – SMB1607D, SMB1609Z – SMB1650C, SMB3117M – SMB3164B, SMB3169M, SG1700U – SG1730H, SG1735U – SG1738L, SG1740D – SG1748H)
MooVita Advanced Driver Assistance System (SMB1428D, SMB1432R, SMB1445D, SMB1458S, SMB1480B, SMB1491U, SMB1500C, SMB1525G, SMB1539S, SMB1545Z, SMB1555U, SMB1576J, SMB1600Y, SMB1610T, SMB1630K & SMB1634A)
Mobileye 630 Advanced Driver Assistance System (SG1702P, SG1711M, SG1721J, SMB3117M – SMB3121A, SMB3123U – SMB3163D, & SMB3165Z – SMB3169M)
ST Engineering DriveSafe Intelligent Warning System (SMB3122Y)
TNT Surveillance 360° Surround View Camera System (SMB1421Y, SMB1423S, SMB1424P, SMB1426J, SMB1429B, SMB1430X, SMB1434K, SMB1440S, SMB1444G, SMB1448X, SMB1478J, SMB1479G, SMB1483T, SMB1484R, SMB1488E, SMB1490Y, SMB1492S, SMB1494L, SMB1495J, SMB1503U, SMB1505P, SMB1506L, SMB1515K, SMB1517E, SMB1522P, SMB1523L, SMB1526D – SMB1529X, SMB1531M, SMB1532K, SMB1538U, SMB1540L – SMB1544B, SMB1558L, SMB1560D – SMB1562Z, SMB1565R, SMB1567K, SMB1568H, SMB1589Y, SMB1590S, SMB1608B, SG1706D – SG1708Z, SG1717Y, SG1718U, SG1725Z – SG1727T, SG1734Y – SG1736S, SG1740D – SG1742Z, SG1745R, SG1747K & SG1748H)

Others Tongda TD-10 Bus line managing and station announcer system
Adjustable air-conditioning vents
Additional grab pole at wheelchair bay
Entrance door closing announcement
Stroller restraint system
Elekon Micro Systems next bus arrival display (SMB1429B)
Automated External Defibrillator (AED) (SMB3164B & SMB3165Z)

Deployments[edit]

SG1700U – SG1748H[edit]

SMB1421Y – SMB1499Z[edit]

SMB1500C – SMB1599T[edit]

SMB1600Y – SMB1650C[edit]

SMB3117M – SMB3169M[edit]

Other information

Legend[edit]

Depot allocation
AMDEP
Ang Mo Kio Depot (Defunct)
(SBS Transit / SMRT Buses)
ARBP
Ayer Rajah Bus Park (Defunct)
(SBS Transit)
BBDEP
Bukit Batok Depot
(SBS Transit)
BNDEP
Bedok North Depot
(SBS Transit)
BRBP
Braddell Bus Park
(SBS Transit)
BUDEP
Bulim Depot
(Tower Transit)
CGBP
Changi Bus Park (Defunct)
(SBS Transit)
HGDEP
Hougang Depot
(SBS Transit)
KJDEP
Kranji Depot
(SMRT Buses)
LYDEP
Loyang Depot
(Go-Ahead)
MDDEP
Mandai Depot
(Tower Transit)
SEDEP
Seletar Depot
(SBS Transit)
SLBP
Soon Lee Bus Park (Defunct)
(SBS Transit)
SLDEP
Soon Lee Depot
(SMRT Buses)
SWDEP
Sengkang West Depot
(SBS Transit)
UPDEP
Ulu Pandan Depot
(SBS Transit)
WLBP
Woodlands Bus Park
(SMRT Buses)
WLDEP
Woodlands Depot
(SMRT Buses)
Deployment legend
EB Employee bus
FD Flexi-Deployment
SP Spare bus
TRG Training Bus
* Crossover
/ Sharebus
// Secondary deployment
Livery type
SBS0000B
 SBS Transit Livery
SMB0000K
 SMRT Buses White/Red Livery
SMB9999U
 SMRT Pixel Livery
SG0000M
 LTA Lush Green Livery
Advertisement
N/A Not available
(empty) Two-third (⅔) body ad with front one-third (⅓) of left & right sides left unwrapped (in previous body colour).
B: Ad covering the entire rear.
L: Ad on nearside / left side. (Shared ad)
R: Ad on offside / right side. (Shared ad)
BT: Two-third (⅔) body ad with extra rectangular Moove Big Top ad portions extending upwards along length of sides & rear.
BT+: Two-third (⅔) body ad with extra rectangular Moove Big Top Plus ad portions extending upwards along length of sides & rear.
2D: Two-third (⅔) body ad with two-dimensional (2D) pop-up at side(s) / rear.
3D: Two-third (⅔) body ad with three-dimensional (3D) pop-up at side(s) / rear.
MS: Two-third (⅔) strip ad covering center portion of left & right sides.
PS: Partial side ad covering middle portion of left & right sides.
NS: Ad covering the center portion of the nearside.
OS: Ad covering the center portion of the offside.

Lifespan expiry date[edit]

Click to expand/collapse
Lifespan expiry date Registration no.
7 Jul 2031 SMB1421Y – SMB1425L
9 Jul 2031 SMB1426J – SMB1430X
23 Jul 2031 SMB1431T – SMB1441P
24 Jul 2031 SMB1443J
6 Aug 2031 SMB1442L, SMB1444G – SMB1452H
20 Aug 2031 SMB1453E – SMB1462D
31 Aug 2031 SMB1463B
10 Sep 2031 SMB1464Z – SMB1475S
17 Sep 2031 SMB1476P – SMB1487H
12 Oct 2031 SMB1488E – SMB1498B
19 Oct 2031 SMB1499Z – SMB1509D
26 Oct 2031 SMB1510Z – SMB1513R, SMB1515K, SMB1516H
28 Oct 2031 SMB1521S – SMB1525G
19 Nov 2031 SMB1514M, SMB1517E – SMB1520U, SMB1526D – SMB1530R
25 Nov 2031 SMB1531M – SMB1534E
2 Dec 2031 SMB1535C, SMB1536A, SMB1538U
11 Dec 2031 SMB1537Y, SMB1539S – SMB1544B, SMB1546X, SMB1549M
14 Dec 2031 SMB1545Z, SMB1548R, SMB1552C
16 Dec 2031 SMB1547T, SMB1550H, SMB1551E, SMB1553A – SMB1556S
18 Dec 2031 SMB1563X, SMB1566M, SMB1567K
22 Dec 2031 SMB1557P – SMB1562Z, SMB1568H, SMB1573S
29 Dec 2031 SMB1564T, SMB1565R, SMB1569E – SMB1572U, SMB1574P – SMB1586E
6 Jan 2032 SMB1587C – SMB1595D
12 Jan 2032 SMB1596B – SMB1600Y
15 Jan 2032 SMB1601U, SMB1602S
26 Jan 2032 SMB1603P, SMB1604L
27 Jan 2032 SMB1605J, SMB1606G, SMB1609Z – SMB1614H
1 Feb 2032 SMB3117M, SMB3118K
2 Feb 2032 SMB1615E – SMB1620P
12 Feb 2032 SMB1607D, SMB1608B, SMB1621L – SMB1632E
16 Feb 2032 SMB1633C – SMB1641D
25 Feb 2032 SMB1642B, SMB1643Z, SMB1645T, SMB1646R
26 Feb 2032 SMB1644X, SMB1647M – SMB1650C
31 Mar 2032 SMB3119H – SMB3122Y
3 May 2032 SMB3123U – SMB3126L
1 Jun 2032 SMB3127J – SMB3130Z
2 Aug 2032 SMB3131X – SMB3133R
31 Aug 2032 SMB3134M – SMB3137E
1 Nov 2032 SMB3138C – SMB3144J
30 Nov 2032 SMB3145G – SMB3163D
3 Jan 2033 SMB3164B – SMB3169M
31 Jan 2033 SG1700U – SG1704J
28 Feb 2033 SG1705G – SG1709X, SG1738L – SG1748H
3 May 2033 SG1710R – SG1714E
31 Aug 2033 SG1715C – SG1733A
2 Oct 2033 SG1734Y – SG1736S
4 Oct 2033 SG1737P

Type of purchase(s)[edit]

Click to expand/collapse
Leased by Land Transport Authority (LTA) from SMRT Buses for Bus Contracting Model (BCM) Tendered packages SMB1421Y, SMB1423S, SMB1424P, SMB1426J, SMB1429B, SMB1430X, SMB1434K, SMB1440S, SMB1444G, SMB1448X, SMB1478J, SMB1479G, SMB1483T, SMB1484R, SMB1488E, SMB1490Y, SMB1492S, SMB1494L, SMB1495J, SMB1503U, SMB1505P, SMB1506L, SMB1515K, SMB1517E, SMB1522P, SMB1523L, SMB1526D — SMB1529X, SMB1531M, SMB1532K, SMB1538U, SMB1540L — SMB1544B, SMB1558L, SMB1560D — SMB1562Z, SMB1565R, SMB1567K, SMB1568H, SMB1589Y, SMB1590S, SMB1608B
Land Transport Authority (LTA)'s Bus Service Enhancement Programme (BSEP) SMB3117M – SMB3169M
Land Transport Authority (LTA)'s purchase for Bus Service Enhancement Programme (BSEP) and Bus Contracting Model (BCM) SG1700U – SG1748H

Miscellaneous[edit]

Buses with APAD registration[edit]

Click to expand/collapse
Buses with full APAD registration
(8 buses)		 SG1705G, SG1709X – SG1711M, SG1714E – SG1716A & SG1722G

Buses with double offside wing mirror[edit]

Click to expand/collapse
Equipped with double offside wing mirror SG1701S, SG1705G, SG1708Z, SG1711M, SG1713H, SG1719S, SG1720L, SG1726X, SG1740D – SG1742Z, SG1744T, SMB1422U, SMB1426J, SMB1428D, SMB1431T, SMB1435H, SMB1436E, SMB1439Y – SMB1441P, SMB1443J, SMB1445D, SMB1446B, SMB1450M, SMB1452H, SMB1455A, SMB1456Y, SMB1459P, SMB1464Z, SMB1468M, SMB1469K, SMB1475S – SMB1477L, SMB1481Z, SMB1483T, SMB1484R, SMB1486K – SMB1488E, SMB1490Y, SMB1491U, SMB1493P, SMB1494L, SMB1502Y, SMB1504S, SMB1508G, SMB1513R, SMB1520U, SMB1521S, SMB1524J, SMB1528Z, SMB1529X, SMB1531M, SMB1540L, SMB1541J, SMB1543D – SMB1545Z, SMB1555U, SMB1561B, SMB1566M, SMB1570A, SMB1576J, SMB1581T, SMB1589Y, SMB1591P, SMB1593J, SMB1599T, SMB1601U, SMB1602S, SMB1605J, SMB1606G, SMB1611R, SMB1613K, SMB1619U, SMB1620P, SMB1623G, SMB1625B, SMB1626Z, SMB1628T – SMB1630K, SMB1633C, SMB1634A, SMB1637S, SMB1640G, SMB1642B, SMB1646R, SMB1647M, SMB1649H, SMB3118K, SMB3126L, SMB3130Z, SMB3152K & SMB3154E

Buses with newer generation steering wheel[edit]

Click to expand/collapse
Equipped with newer generation steering wheel All buses except SG1720L, SG1728R, SG1729M, SG1731E – SG1733A, SG1739J, SMB1432R, SMB1433M, SMB1436E, SMB1458S, SMB1469K, SMB1487H, SMB1538U – SMB1541J, SMB1546X – SMB1550H, SMB1554Y, SMB1556S, SMB1558L, SMB1567K, SMB1585H, SMB1599T, SMB1600Y, SMB1603P, SMB1606G, SMB1612M, SMB1618Y, SMB1623G, SMB1625B, SMB1626Z, SMB1630K, SMB1631H & SMB1645T

Notes[edit]

  • All APAD buses have a luggage rack installed at the wheelchair bay of the bus.
  • SG1700U – SG1709X, SG1711M – SG1743X & SMB3138C – SMB3169M are equipped with nearside blind spot mirror.
  • SG1719S features a different rear paint job.
  • SMB1432R (front axles) is fitted with newer style dress rim covers without the MAN logo.
  • SMB1437C, SMB1465X, SMB1489C, SMB1627X, SMB3129D & SMB3156A are equipped with Batch 1/2-spec engine cover.
  • SMB1502Y & SMB3129D is equipped with Batch 1/2-spec exit door panel.
