Zhongtong LCK6126EVG

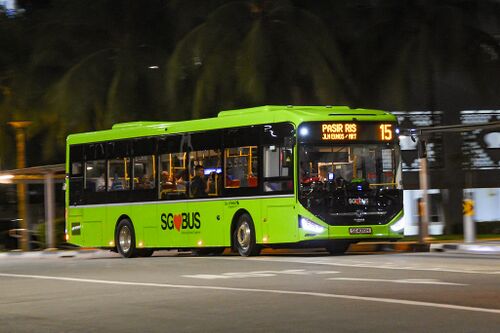

SG4010H (Service 15) — Demonstrator

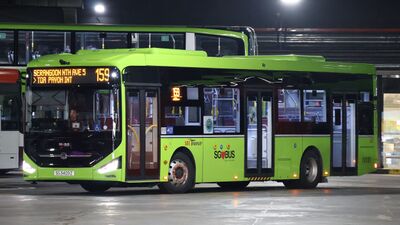

SG3409Z (Service 159) — Production Batch

Specifications

Operators
Registration number	Demonstrator (De-registered)	Production Batch
	SG4010H	SG3401U – SG3411R
Vehicle make	Zhongtong
Vehicle manufacturer	Zhongtong Bus Holding
Vehicle model	LCK6126EVG (N12)
Vehicle bodywork	Zhongtong
Length	11.99m
Width	2.55m
Quantity	1	11
Year	2022	2024
Period of registration	10 Mar 2023	16 Dec 2024 – present
Passenger capacity	Seating: 28 Standing: 57 Wheelchair bay: 2 Total: 85	Seating: 28 Standing: TBC Wheelchair bay: 2 Total: TBC
Electric motor model	Prestolite TM4 TZ368XSPE300WH permanent magnet synchronous electric motor
Battery	CATL lithium iron phosphate
Battery capacity	422 kWh
Power/torque	145 kW / 1055 Nm (Continuous) 245 kW / 3329 Nm (Maximum)
Suspension system	WABCO Electronically Controlled Air Suspension (ECAS)
Braking system	WABCO Electronic Braking System (EBS) WABCO Anti-Lock Braking System (ABS) WABCO Anti-Slip Regulation (ASR) WABCO Electronic Stability Programme (ESP)
Air-con model	Valeo REVO-E Global
EDS model	Luminator ULTIMA
EDS controller model	Luminator Basic
PIDS model	Luminator INFOtainment
APCS model	TNT Surveillance T-APC
Seat model	Ster 8MI
Additional features
ADAS model	TNT Surveillance T-DA Driver Alert System TNT Surveillance T-FA Front & T-SA Side Alert Cameras TNT Surveillance 360° Surround View Camera System TNT Surveillance T-DM821 Camera Mirror System (Production Batch)
Others	USB charging ports Stroller restraint system​ Automatic wheelchair ramp (Production Batch) Rear emergency exit hatch (Production Batch) VDO Tachograph (Production Batch)

Deployments

Registration number	Deployments	Advertisement	Former deployments
SG3401U	SWDEPSP	N/A	SBS Transit: N/A
SG3402S		N/A	N/A
SG3403P		N/A	N/A
SG3404L		N/A	N/A
SG3405J	SWDEPSP	N/A	SBS Transit: N/A
SG3406G	SWDEPSP	N/A	SBS Transit: N/A
SG3407D		N/A	N/A
SG3408B		N/A	N/A
SG3409Z	SWDEPSP	N/A	SBS Transit: N/A
SG3410T	SWDEPSP	N/A	SBS Transit: N/A
SG3411R		N/A	N/A

Former deployments

Demonstrator

Registration number	Registration date	Status	Service(s) served
SG4010H	10 Mar 2023	Re-registered as PD2261P under Tong Tar Transport	Go-Ahead: LYDEP 3/3A* (Apr 2023 - Oct 2023), LYDEP 358 (Oct 2023 - Apr 2024)

Other information

Legend

Depot allocation
AMDEP Ang Mo Kio Depot (Defunct) (SBS Transit / SMRT Buses) ARBP Ayer Rajah Bus Park (Defunct) (SBS Transit) BBDEP Bukit Batok Depot (SBS Transit) BNDEP Bedok North Depot (SBS Transit) BRBP Braddell Bus Park (SBS Transit) BUDEP Bulim Depot (Tower Transit) CGBP Changi Bus Park (Defunct) (SBS Transit) HGDEP Hougang Depot (SBS Transit) KJDEP Kranji Depot (SMRT Buses) LYDEP Loyang Depot (Go-Ahead) MDDEP Mandai Depot (Tower Transit) SEDEP Seletar Depot (SBS Transit) SLBP Soon Lee Bus Park (Defunct) (SBS Transit) SLDEP Soon Lee Depot (SMRT Buses) SWDEP Sengkang West Depot (SBS Transit) UPDEP Ulu Pandan Depot (SBS Transit) WLBP Woodlands Bus Park (SMRT Buses) WLDEP Woodlands Depot (SMRT Buses)
Deployment legend
EB	Employee bus
FD	Flexi-Deployment
SP	Spare bus
TRG	Training Bus
*	Crossover
/	Sharebus
//	Secondary deployment
Livery type
SBS0000B	SBS Transit Livery
SMB0000K	SMRT Buses White/Red Livery
SMB9999U	SMRT Pixel Livery
SG0000M	LTA Lush Green Livery

Advertisement
N/A	Not available
(empty)	Two-third (⅔) body ad with front one-third (⅓) of left & right sides left unwrapped (in previous body colour).
B:	Ad covering the entire rear.
L:	Ad on nearside / left side. (Shared ad)
R:	Ad on offside / right side. (Shared ad)
BT:	Two-third (⅔) body ad with extra rectangular Moove Big Top ad portions extending upwards along length of sides & rear.
BT+:	Two-third (⅔) body ad with extra rectangular Moove Big Top Plus ad portions extending upwards along length of sides & rear.
2D:	Two-third (⅔) body ad with two-dimensional (2D) pop-up at side(s) / rear.
3D:	Two-third (⅔) body ad with three-dimensional (3D) pop-up at side(s) / rear.
MS:	Two-third (⅔) strip ad covering center portion of left & right sides.
PS:	Partial side ad covering middle portion of left & right sides.
NS:	Ad covering the center portion of the nearside.
OS:	Ad covering the center portion of the offside.

Lifespan expiry date

Click to expand/collapse
Lifespan expiry date	Registration number
15 Dec 2041	SG3401U, SG3402S
29 Dec 2041	SG3403P
10 Feb 2042	SG3404L – SG3406G, SG3410T
18 Feb 2042	SG3407D – SG3409Z
19 Feb 2042	SG3411R

Type of purchase(s)

All buses are bought under Land Transport Authority (LTA)'s Bus Contracting Model (BCM).

Notes

• SG4010H was the demonstrator.
• All buses have the smaller sized "Eco Bus - Zero Emissions, Cleaner Air" decals pasted.
